Gantry System
- Exceptional Stability: Minimizes vibration for consistent weld quality.
- Large Work Envelope: Handles big/long workpieces without repositioning.
- High Precision: ±0.01mm repeatability for accurate laser placement.
- Efficient Automation: Enables 24/7 operation, cuts labor costs.
- Seamless Integration: Works with robotic laser welders/battery laser welding machines.

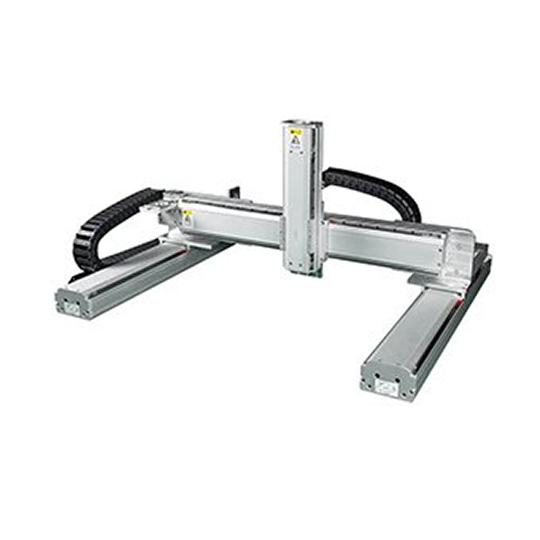

What is a gantry system?
A gantry system is a rigid, bridge-style mechanical motion solution engineered as the core positioning backbone for industrial laser welding and cutting processes.
It integrates a movable carriage (mounted with laser processing heads) to deliver precise, stable multi-axis movement across large work areas—directly addressing the high-precision, heavy-load needs of laser material processing.
Core Components
- Linear Drive Modules
High-speed belt-driven core: Enables smooth laser head movement, ensuring uniform focus on large workpieces.
- Servo Motor & Gear Reducer Assemblies
Brushless closed-loop servos + planetary gearboxes: Deliver steady power for sub-millimeter laser head positioning.
- Positioning & Limit Sensors
Home position sensors: Ensure repeatable calibration for consistent batch processing.
Travel limit sensors: Prevent over-travel, protecting laser heads and workpieces.
- Reinforced Structural Frame
Steel/high-strength aluminum build: Reduces vibration, avoiding weld/cut defects.
Types of gantry systems
Strong Load Capacity & Stability
Reinforced steel/aluminum frames eliminate vibration and support large/heavy workpieces (up to tons), enabling stable operation for oversized components (e.g., automotive chassis, ship structural parts) without compromising processing accuracy.
Precision Multi-Axis With Compact Design
Perfect for small workstations with its compact benchtop layout.
The multi-axis gantry slide delivers precise positioning, meeting the welding needs of precision battery parts. Ideal for small-batch precision operations.
More About Gantry System
- Linear Gantry System Specification
- Customization and Support
- Gantry Systems vs. Other Motion Systems
| Parameter | Specification |
| Position Repeatability (mm) | ±0.04 |
| Maximum Stroke (mm) | 3050 |
| Maximum Speed (mm/s) | 2000 |
| Maximum Payload – Horizontal (kg) | 45 |
| Maximum Payload – Vertical (kg) | / |
| Rated Thrust (N) | 204 |
| Standard Stroke Pitch (mm) | 50-3050mm (50mm Pitch) |
| Motor Output (W) | 400 |
| Belt Width (mm) | 30 |
At Grand Laser, we deliver tailored gantry system solutions engineered to match your unique industrial laser processing workflows—maximizing flexibility and productivity.
To craft a precise, performance-driven system, please share these key details:
- Laser application (cutting/welding), target material, workpiece size/weight
- Precision specs (positioning accuracy, speed, X/Y/Z stroke lengths)
- Space/environment constraints, existing equipment integration needs
- Custom requirements (dual-drive, anti-vibration, scalability)
Our end-to-end support includes technical drawings, installation guidance, staff training, and responsive after-sales service.
Optimize your laser operations with a gantry system built for your exact needs—contact our engineering team today.
| System Type | Advantages | Disadvantages | Typical Applications |
| Gantry System | Large-area precision; 50–1000kg load | Big space; Low 3D flexibility | Thick-plate laser cutting; steel structure welding |
| Articulated Robots (6-Axis Arms) | 3D flexibility; curved-surface work | Poor long-distance precision; high cost | Curved welding; irregular part cutting |
| Cantilever Welding Structure | Compact; low-cost; light-load | Low rigidity; ≤20kg load | Thin-plate spot welding; small-part laser cutting |
| Linear Motor System | Ultra-precision (±0.001–0.005mm); high-speed | High cost; ≤200kg load | Precision component welding; high-speed fine cutting |
If you have any other questions about our laser equipment, please feel free to contact us.
For Laser Welding Gantry System
- Load & Travel: Account for weld head, wire feeder + cooling unit weight; match axis travel to your workpiece’s weld area.
- Stability: Opt for steel frames + low-backlash guides (reduces vibration to avoid weld seam deviation).
- Precision: Target ≤0.05mm repeatability for uniform, consistent weld beads.
For Laser Cutting Gantry System
- Load & Range: Include cutting head + gas system weight; align axis travel with your workpiece’s cut dimensions.
- Speed-Rigidity Balance: Use aluminum-steel frames + high-speed linear motors (fast cuts without sacrificing edge sharpness).
- Durability: Add enclosed cable chains + dust-resistant guides (protects against cutting chip damage).
If you’re still unsure which gantry system is best for you, please feel free to contact us. Our engineering team will be happy to provide you with tailored advice.
